Product Overview

● Kernel: ARM Cortex-A8 ● Dominant frequency: 1Ghz ● Memory: 512MBytes ● Flash: Standard 4GB inand ● Dimensions:185mm*110mm*38mm

Hardware Interface

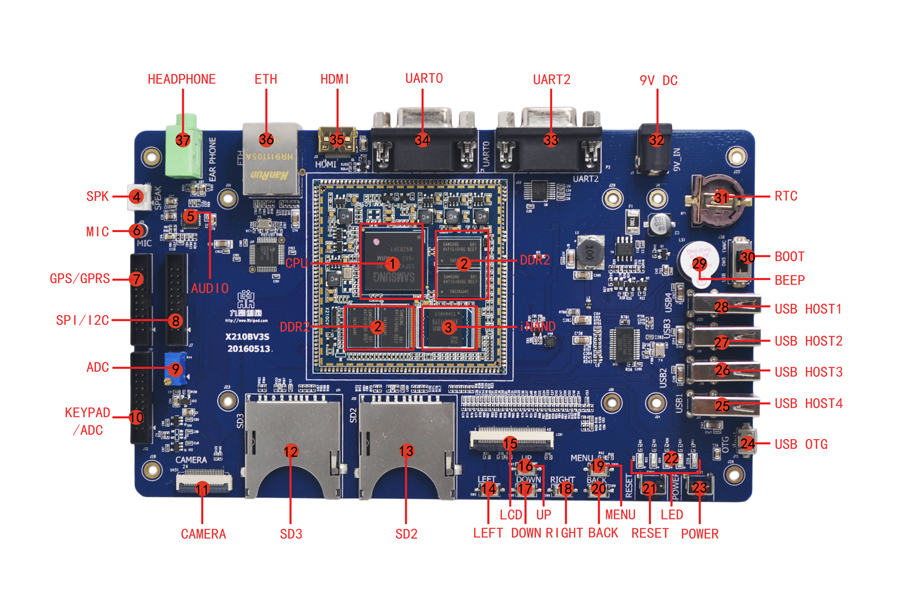

Introduction to Hardware Interfaces NO. Name Description [1] CPU S5PV210AH-A0，ARM Cortex A8,1GHz [2] Memory DDR2，512MBytes [3] Storage 4GB inand [4] Speaker interface External speaker output [5] Audio chip WM8976G [6] MIC Recording Input [7] UART/GPS/GPRS UART expansion interface [8] SPI/I2C SPI, I2C periphrals expansion [9] Precision adjustable potentiometer Accurate ADC voltage sampling [10] Keypad/ADC interface Extended 4 * 4 matrix keyboard, extended ADC sampling; [11] Camera interface Standard 24PIN parallel camera interface [12] SD card,CH3 SD card, using channel 3 [13] SD card,CH2 SD card, using channel 2 [14] Button, Left Independent button [15] LCD/VGA interface RGB output interface [16] Button, Up Independent button [17] Button, Down Independent button [18] Button, Right Independent button [19] Button, menu Independent button [20] Button, back Independent button [21] Hard reset button Hard reset [22] LED LED light [23] Soft on/off button Power-on/off and sleep wakeup button [24] USB OTG USB OTG interface [25] USB HOST4 HUB chip extension, HOST [26] USB HOST3 HUB chip extension, HOST [27] USB HOST2 HUB chip extension, HOST [28] USB HOST1 HUB chip extension, HOST [29] Buzzer Supporting the active buzzer [30] Boot Key Start mode selection [31] RTC RTC battery connector, CR1202 [32] 9V input jack DC power input port [33] UART2 Debug serial port 2 [34] UART0 Debug serial port 0 [35] HDMI interface HDMI output interface [36] Ethernet DM9000CEP interface [37] Headphone Audio output

Software

210 Development Board Driver Support List System Driver Android4.0.4 Android2.3 Wince6.0 Linux2.6.35+QT4.8.4 7Inch LCD(1024*600) ● ● ● ● Resistive Touch ● ● ● ● Capacitive Touch ● ● ● ● Nandflash Driver ● ● ● ● EMMC Driver ● ● ● ● SD Card Driver ● ● ● ● Independent Key ● ● ● ● Gsensor ● ● Null Null LED ● ● ● ● Power ON/OFF ● ● Null ● Sleep/Wake up ● ● ● ● Four Channels of USB HOST Driver ● ● ● ● One Channel of USB Device Driver ● ● ● ● Audio(WM8976) ● ● ● ● Recording(WM8976) ● ● Null Null USB WIFI ● ● ● ● Camera(OV2655) ● ● ● ● Serial Port ● ● ● ● HDMI ● ● ● ● Bluetooth(Serail Port) ● Null Null Null USB Bluetooth Null ● ● Null GPS Module ● ● ● Null Ethernet(DM9000CEP) ● ● ● ● USB Mouse and Keyboard ● ● ● ● Uboot ● ● Null ● Uboot Update Image From SD Card ● ● Null ● Xboot Update Image From SD Card ● ● Null ● Eboot Update Image From SD Card Null Null ● Null TVIN Module(TVP5150) Null Null ● Null TVOUT Module(CH7026) ● ● ● ● VGA Driver(SDA7123) ● ● ● ● GPRS Driver(SIM300) ● ● ● ●

Product Overview

● Kernel: ARM Cortex-A8 ● Dominant frequency: 1Ghz ● Memory: 512MBytes ● Flash: Standard 4GB inand ● Dimensions:185mm*110mm*38mm

Hardware Interface

Introduction to Hardware Interfaces NO. Name Description [1] CPU S5PV210AH-A0，ARM Cortex A8,1GHz [2] Memory DDR2，512MBytes [3] Storage 4GB inand [4] Speaker interface External speaker output [5] Audio chip WM8976G [6] MIC Recording Input [7] UART/GPS/GPRS UART expansion interface [8] SPI/I2C SPI, I2C periphrals expansion [9] Precision adjustable potentiometer Accurate ADC voltage sampling [10] Keypad/ADC interface Extended 4 * 4 matrix keyboard, extended ADC sampling; [11] Camera interface Standard 24PIN parallel camera interface [12] SD card,CH3 SD card, using channel 3 [13] SD card,CH2 SD card, using channel 2 [14] Button, Left Independent button [15] LCD/VGA interface RGB output interface [16] Button, Up Independent button [17] Button, Down Independent button [18] Button, Right Independent button [19] Button, menu Independent button [20] Button, back Independent button [21] Hard reset button Hard reset [22] LED LED light [23] Soft on/off button Power-on/off and sleep wakeup button [24] USB OTG USB OTG interface [25] USB HOST4 HUB chip extension, HOST [26] USB HOST3 HUB chip extension, HOST [27] USB HOST2 HUB chip extension, HOST [28] USB HOST1 HUB chip extension, HOST [29] Buzzer Supporting the active buzzer [30] Boot Key Start mode selection [31] RTC RTC battery connector, CR1202 [32] 9V input jack DC power input port [33] UART2 Debug serial port 2 [34] UART0 Debug serial port 0 [35] HDMI interface HDMI output interface [36] Ethernet DM9000CEP interface [37] Headphone Audio output

Software

210 Development Board Driver Support List System Driver Android4.0.4 Android2.3 Wince6.0 Linux2.6.35+QT4.8.4 7Inch LCD(1024*600) ● ● ● ● Resistive Touch ● ● ● ● Capacitive Touch ● ● ● ● Nandflash Driver ● ● ● ● EMMC Driver ● ● ● ● SD Card Driver ● ● ● ● Independent Key ● ● ● ● Gsensor ● ● Null Null LED ● ● ● ● Power ON/OFF ● ● Null ● Sleep/Wake up ● ● ● ● Four Channels of USB HOST Driver ● ● ● ● One Channel of USB Device Driver ● ● ● ● Audio(WM8976) ● ● ● ● Recording(WM8976) ● ● Null Null USB WIFI ● ● ● ● Camera(OV2655) ● ● ● ● Serial Port ● ● ● ● HDMI ● ● ● ● Bluetooth(Serail Port) ● Null Null Null USB Bluetooth Null ● ● Null GPS Module ● ● ● Null Ethernet(DM9000CEP) ● ● ● ● USB Mouse and Keyboard ● ● ● ● Uboot ● ● Null ● Uboot Update Image From SD Card ● ● Null ● Xboot Update Image From SD Card ● ● Null ● Eboot Update Image From SD Card Null Null ● Null TVIN Module(TVP5150) Null Null ● Null TVOUT Module(CH7026) ● ● ● ● VGA Driver(SDA7123) ● ● ● ● GPRS Driver(SIM300) ● ● ● ●
