Chip Comparison

The IBOX4418 development board is designed using Samsung's S5P4418 chip with 32-bit 4-core A9 architecture. It is completely compatible with the S5P6818 chip pin, and the only difference lies in the internal heart-ARM kernel. The table below lists differences of the two chips:

S5P4418 S5P6818 Time to market October 2014 2014 Technology process 28nm 28nm CPU clock speed 1.4G 1.4G+ Package dimensions 0.65mm pin spacing, 17*17mm2 513-FCBGA package 0.65mm pin spacing, 17*17mm2 513-FCBGA package CPU architecture Cortex-A9 quad-core Cortex-A53 octa-core Cache capacity 32KB*4 I/D cache, 1MB L2 cache 32KB*4 I/D cache, 1MB L2 cache DDR3 interface Single-channel 32-bit data bus, with the operating frequency as high as 800MHz Single-channel 32-bit data bus, with the operating frequency as high as 800MHz Multimedia decoding H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG (almost all the formats) H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG (almost all the formats) Multimedia coding H.263, H.264, MPEG4, MJPEG H.263, H.264, MPEG4, MJPEG Display interface RGB, MIPI, LVDS RGB, MIPI, LVDS Maximum display resolution 2048*1280 2048*1280 Ethernet Interface Integrated Gigabit Ethernet controller Integrated Gigabit Ethernet controller GPIO level 3.3V 3.3V ADC 8-channel 12 bit 0~1.8V 8-channel 12 bit 0~1.8V USB interface 1-channel HOST, 1-channel HSIC, 1-channel OTG 1-channel HOST, 1-channel HSIC, 1-channel OTG Chip ID Supporting the unique 128BIT ID Supporting the unique 128BIT ID

Hardware Interface

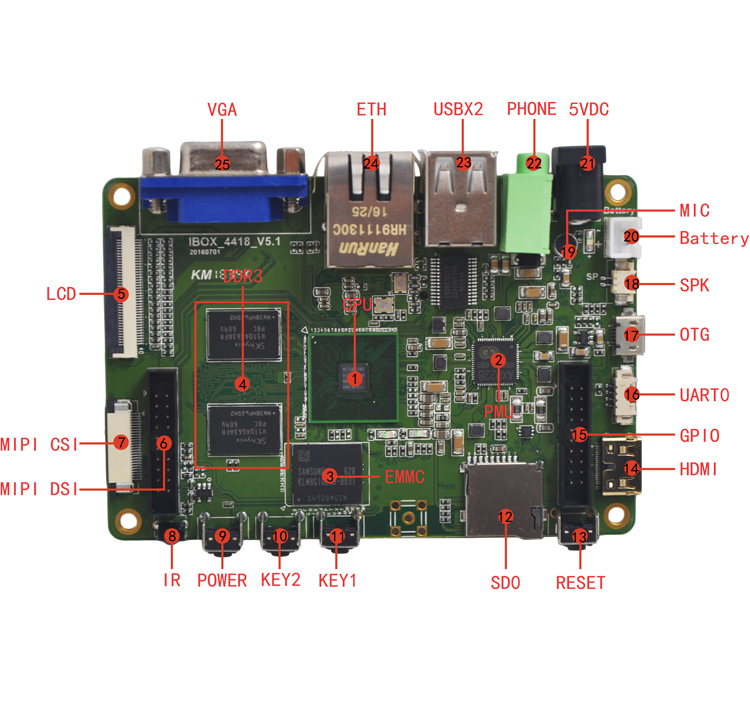

Front View

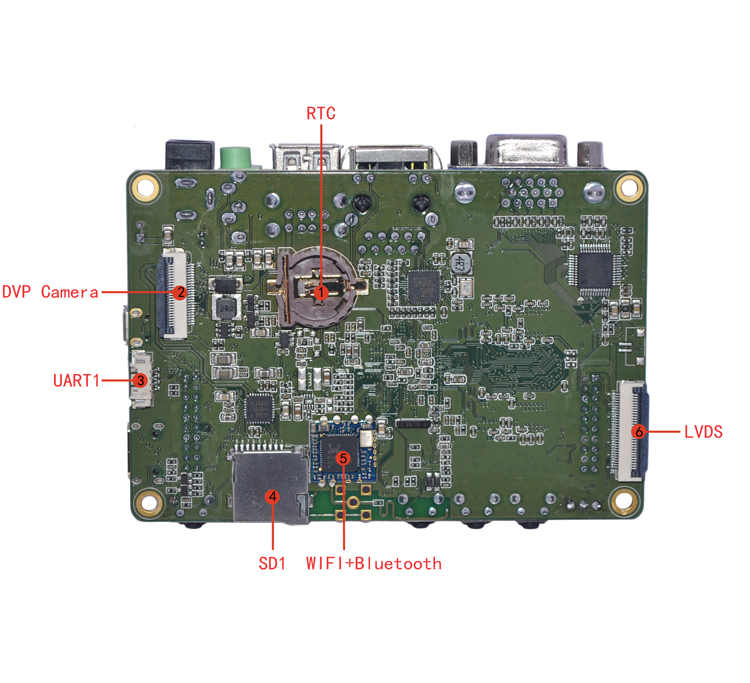

Back View

Product Overview

● Kernel: ARM Cortex-A9 quad core; ● Dominant frequency: 1.4GHz*4; ● Memory: 1GB ● Flash: Standard 8GB eMMC and supporting 4GB/8GB/16GB/32GB eMMC optional for mass production. ● Dimensions:100mm*68mm

Software

X4418 Development Board Driver Support List System Driver linux3.4.39+android4.4.2 linux3.4.39+QT5.0 ubuntu12.04 7Inch RGB LCD(1024*600) ● ● ● 4.3Inch LCD(480*272) ● ● ● LVDS Display(1366*768) ● ● ● MIPI Display ● ● ● PMIC Driver(AXP228) ● ● ● Capacitive Touch ● ● ● Resistive Touch ● ● NULL EMMC Driver ● ● ● SD Card Driver ● ● ● Independent Key ● ● ● Gsensor ● ● NULL LED ● ● ● Buzzer ● ● ● Infrared Remote Control ● ● NULL Power ON/OFF ● ● ● Sleep/Wake up ● ● NULL Four Channels of USB HOST Driver ● ● ● One Channel of USB OTG Driver ● ● ● Audio(RTL5621) ● ● ● Recording(RTL5621) ● NULL NULL USB WIFI ● ● ● USB WIFI/BT4.0 ● NULL ● DVP Camera Driver ● ● NULL Macro camera driver ● ● NULL Dual Parallel Camera Driver ● ● ● USB Camera Driver ● ● ● Dual USB Camera Driver ● ● ● Serial Port ● ● ● HDMI ● ● ● 3G Module(3G dongle) ● NULL ● 3G Module(PCIE Interface) ● NULL NULL GPS Module ● ● ● Gigabit Ethernet ● ● ● USB Mouse and Keyboard ● ● ● Uboot ● ● ● SD Card Offline Update Image ● ● ● TVIN Module(TVP5150) ● ● NULL VGA Driver(SDA7123) ● ● ●
