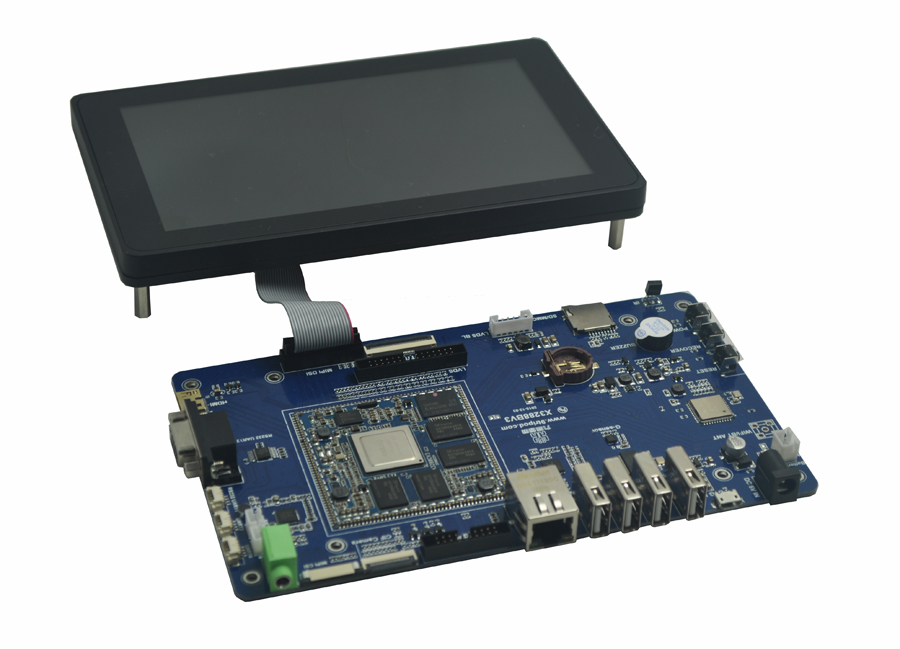

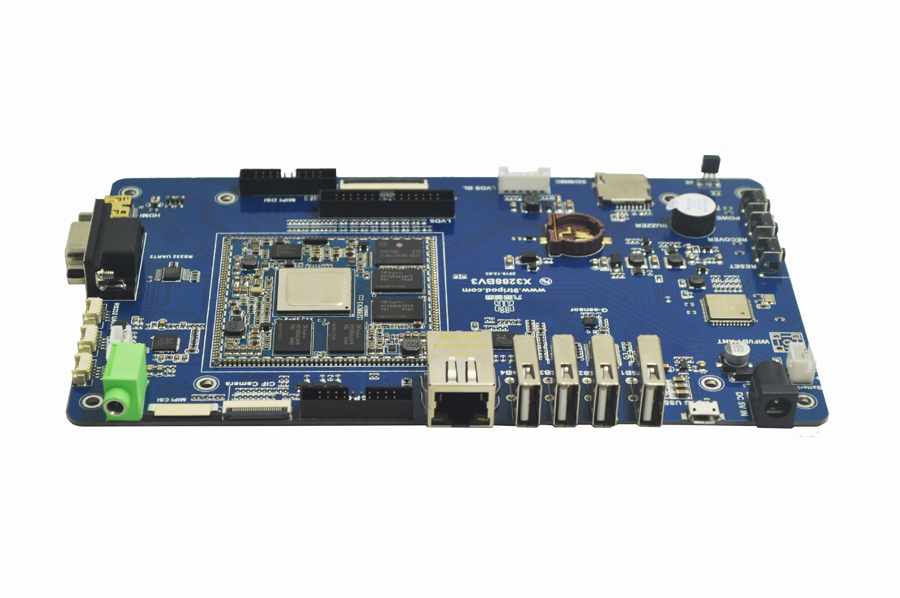

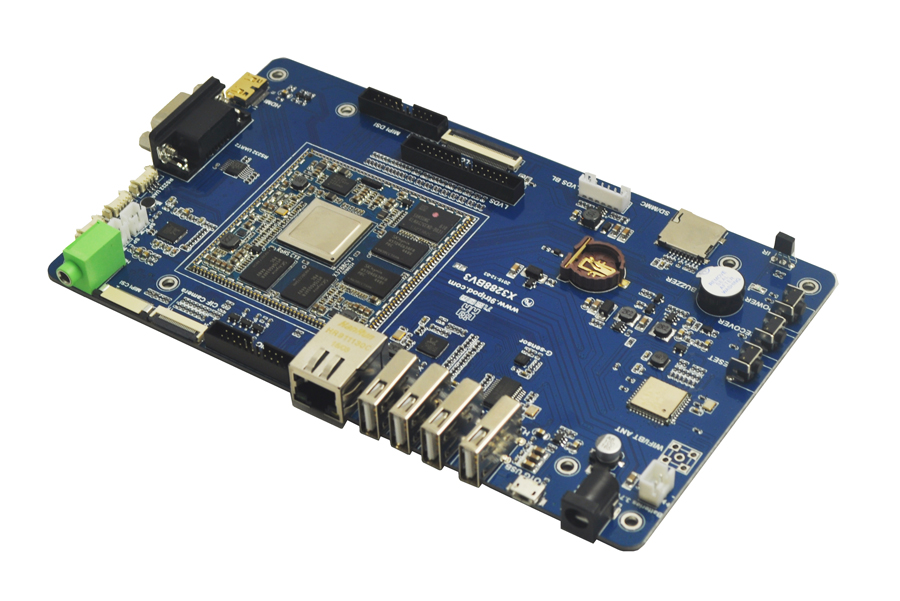

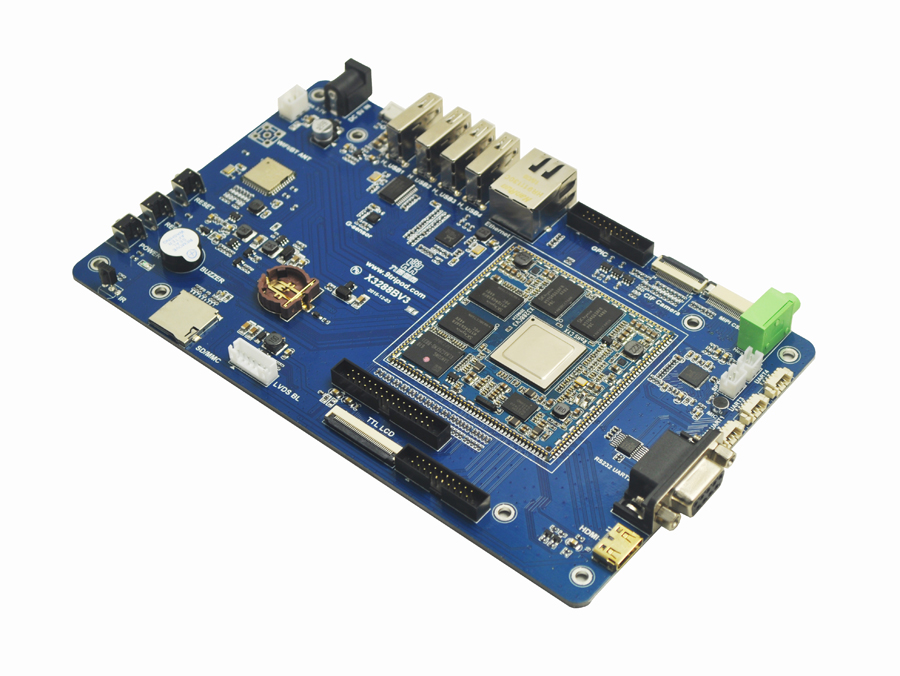

Product Description The X3288 development board consists of the stamp hole core board, base plate and LCD panel. The core board is designed using the 10-layer plate process to ensure stability and reliability. The base plate reserves abundant peripherals and can demonstrate almost all the functions of 3288 chip. The 7-inch TFT LCD is adopted by default and supports RGB, and any MIPI interface can be selected.

Hardware Resources

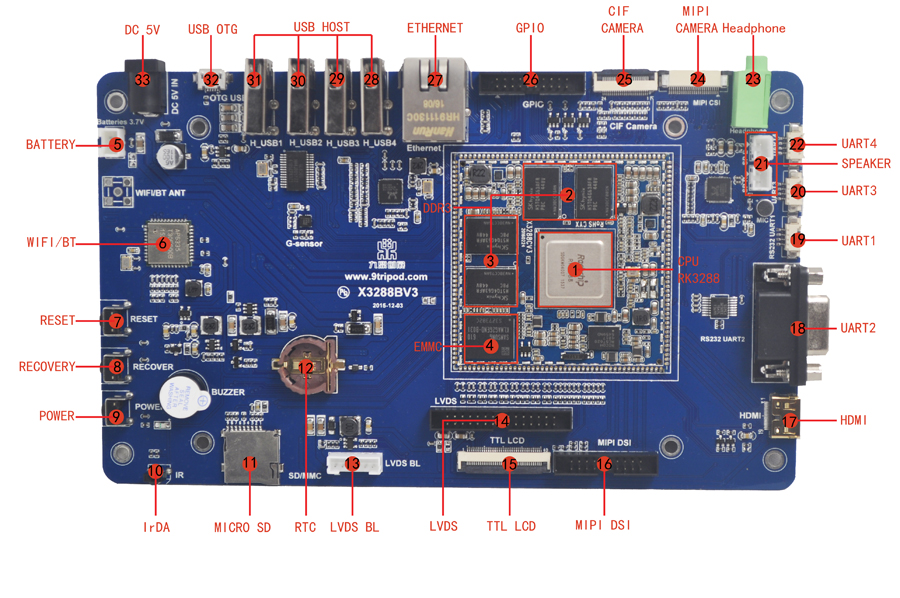

Introduction to Hardware Interfaces Name Description [1] CPU RK3288，ARM Cortex A17,4*1.8GHz [2][3] Memory DDR3, 2 GBytes [4] Storage 16GB eMMC [5] Battery interface Single 4.2V lithium battery interface [6] WIFI/BT AP6335, WIFI/BT combo module [7] Hard reset button Hard reset [8] Recovery Recovery flashing key [9] Power Power Key [10] Infrared receiving head HS0038 infrared integrated receiving head [11] SD card SD card connector [12] RTC RTC battery connector, CR1202 [13] LVDS BL LVDS LCD Backlight,enabling control [14] LVDS interface Connecting to the LCD screen of LVDS interface [15] LCD/VGA interface RGB output interface [16] MIPI DSI Connecting to the LCD screen of MIPI interface [17] HDMI HDMI output interface [18] UART2 Universal serial port 2(default debug port) [19] UART1 Universal serial port 1, RS232 level [20] UART3 Universal serial port 3, TTL level [21] Speaker interface External speaker output [22] UART4 Universal serial port 4, TTL level [23] Earphone interface Earphone output [24] MIPI CSI 26PIN MIPI CSI camera interface [25] Camera interface Standard 24PIN parallel camera interface [26] GPIO interface GPIO expansion port [27] Gigabit Ethernet interface RT8211E interface [28] USB HOST HUB chip extension, HOST [29] USB HOST HUB chip extension, HOST [30] USB HOST HUB chip extension, HOST [31] USB HOST HUB chip extension, HOST [32] USB OTG USB OTG interface [33] 5V input jack DC power input port

Software Resources

X3288 Development Board Driver Support List System Driver                                                                         Linux3.10.49+Android4.4 Linux3.10.79+Android5.1 Linux3.10.49+QT5.5.1 7Inch LCD(1024*600) ● ● ● 4.3Inch LCD(480*272) ● ● ● 5Inch LCD(800*480) ● ● ● LVDS Display(1024*768) ● ● ● LVDS Display(1366*768) ● ● ● MIPI Display(1920*1200) ● ● ● PMIC Driver(5T620) ● ● ● Capacitive Touch ● ● ● Resistive Touch NULL NULL NULL EMMC Driver ● ● ● SD Card Driver ● ● ● Independent Key ● ● ● Gsensor ● ● NULL Buzzer ● ● ● Infrared Remote Control ● ● ● Power ON/OFF ● ● ● Sleep/Wake up ● ● ● Four Channels of USB HOST Driver ● ● ● One Channel of USB OTG Driver ● ● ● Audio(RTL5631) ● ● ● Recording(RTL5631) ● ● NULL USB WIFI ● ● ● USB WIFI/BT4.0 ● ● ● SDIO Dual-frequency WIFI/BT4.0 ● ● NULL DVP Camera Driver ● ● NULL CSI Camera Driver ● ● NULL Macro camera driver ● ● NULL USB Camera Driver ● ● ● Serial Port ● ● ● HDMI ● ● NULL 3G Module(3G dongle) ● ● NULL 3G Module(PCIE Interface) ● ● NULL GPS Module NULL ● ● Gigabit Ethernet ● ● ● USB Mouse and Keyboard ● ● ● Uboot ● ● ● SD Card Offline Update Image ● ● ● TVIN Module(TVP5150) NULL NULL NULL VGA Driver(SDA7123) ● ● ●

Core Board Introduction

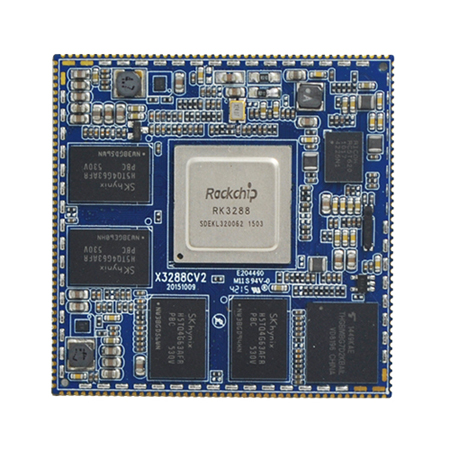

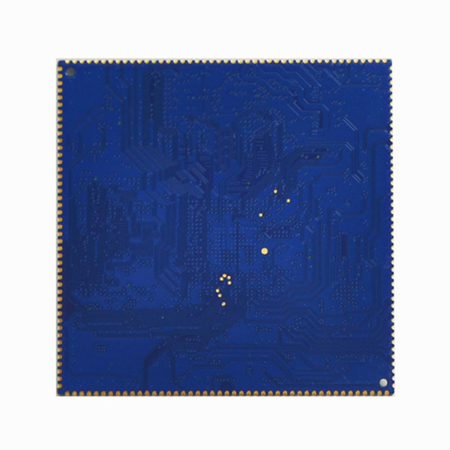

Front view of the core board Rear view of the core board

Feature Parameters Appearance Stamp hole pattern Core board size 55.8mm*55.8mm*3mm Pin spacing 1.2mm Pin pad dimensions 1.8mm*0.7mm Number of pins 180 Number of board layers 10 Input voltage 3.7~5.5V (5V input recommended) Output voltage 3.3V/4.2V (can be used for base plate power supply and battery charging) Operating temperature -10°C~70°C Storage temperature -10°C~80°C

Package Contains

1 X3288 Development Board(Including 7 Inch Capacitive LCD ,RGB interface by default,1024*600 Resolution) 2 5V DC Power Adapter(NOTE: It's a Chinese standard plug, a converter may be needed if your country's standard plug differs from China) 3 Micro USB Cable 4 Ethernet Cable 5 DB9 Serial Cable 6 Development Files(Please ask the seller to send the download link after you finish the payment)
